コンフィグ

Spine

Leaf

End

雑記

・とりあえずEnd-to-End疎通記念の備忘録
・最低限と言いつつvPCは組んでる
・ARPテーブルが面白い

NXOS3# show mac address-table
Legend:
        * - primary entry, G - Gateway MAC, (R) - Routed MAC, O - Overlay MAC
        age - seconds since last seen,+ - primary entry using vPC Peer-Link,
        (T) - True, (F) - False, C - ControlPlane MAC, ~ - vsan
   VLAN     MAC Address      Type      age     Secure NTFY Ports
---------+-----------------+--------+---------+------+----+------------------
     1     0050.7966.6809   dynamic  0         F      F    vPC Peer-Link
+   10     5007.0000.1b08   dynamic  0         F      F    nve1(67.0.0.67)
    10     5018.0005.800a   dynamic  0         F      F    vPC Peer-Link
+   10     5018.0008.800a   dynamic  0         F      F    nve1(67.0.0.67)
    20     0050.7966.6809   dynamic  0         F      F    vPC Peer-Link
+   20     0050.7966.680a   dynamic  0         F      F    nve1(67.0.0.67)
G    -     5003.0000.1b08   static   -         F      F    sup-eth1(R)
G    1     5003.0000.1b08   static   -         F      F    sup-eth1(R)
G    1     5004.0000.1b08   static   -         F      F    vPC Peer-Link(R)

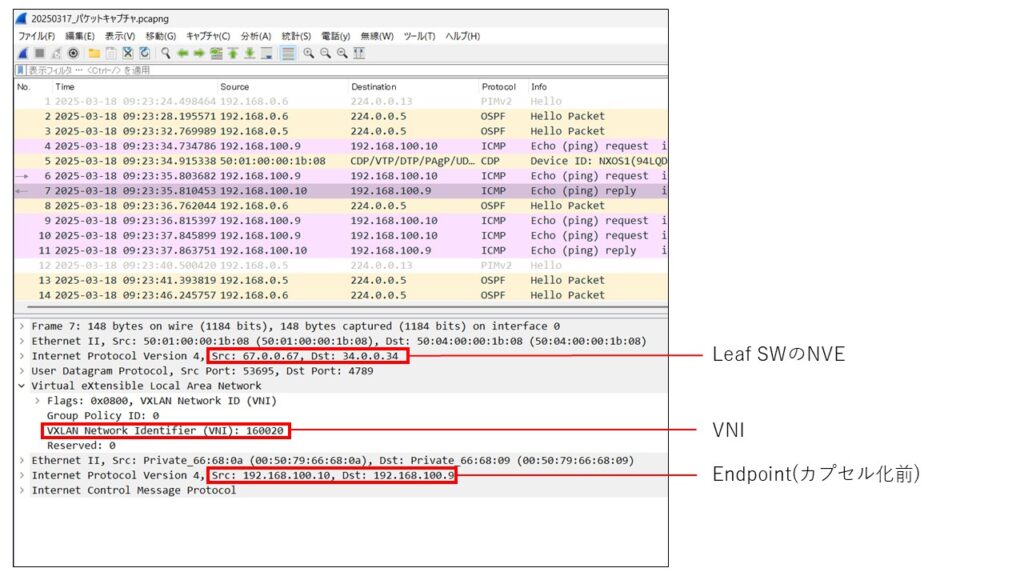

パケットキャプチャ
